铝合金导辊

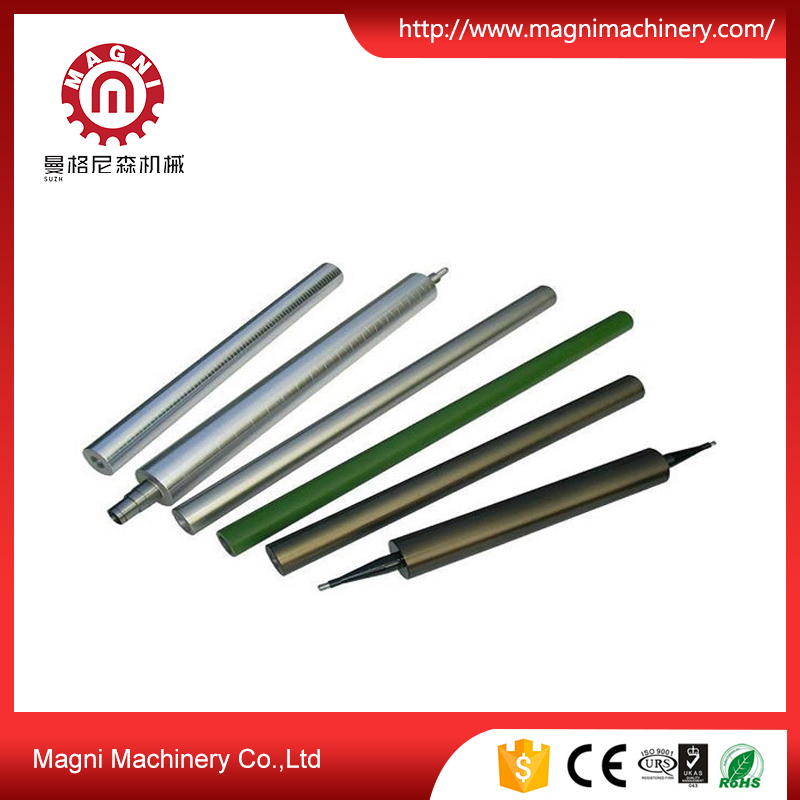

名称:铝合金导辊
材料Material:材料LY12.6063T5,6061T5
尺寸Dimension:定制Customize-made
长度Length:定制Customize-made



介绍Introduction

铝合金辊的作为导辊主要由于其重量轻,传动平稳,安装方便,很好,耐腐蚀等优点被广泛应用于包装印刷工业、造纸工业、电影、电影产业、纺织运输业,橡胶工业,纸张,薄膜,薄膜、布料、皮革、丝绸等材料,市场需求量很大。

我们还可以根据客户的要求定制特殊的产品。

The main components of aluminum alloy roll as the roll material membrane material to go, because of its light weight, smooth transmission, easy to install, nice, corrosion resistance, etc. are widely used in packaging and printing industry, paper industry, film, film industry, textile transport industry, rubber industry, paper, film, film, cloth, leather, silk and other materials, the market is in great demand.

We also accept special customize made according to the customers' request.


规格Specification

外径Outer Dia

(mm)

内径Inner Dia

(mm)

壁厚Thickness

(mm)

加强筋Rib Radius×Qty

Φ226

Φ210

8

R8mm x10

Φ200

Φ175

12.5

None

Φ180

Φ160

10

R5mmx9

Φ163

Φ147

8

None

Φ160

Φ148

6

R5mmx9

Φ150

Φ140

5

R5mmx8

Φ146

Φ130

8

R5mmx9

Φ130

Φ116

7

R4.5mmx8

Φ120

Φ111

4.5

R4.5mmx8

Φ118

Φ102

8

None

Φ113

Φ102

5

R4.5mmx8

Φ110

Φ101

4.5

R4.1mmx8

Φ100

Φ92

4

R4.5mmx8

Φ95

Φ84

5.5

R5mmx9

Φ90

Φ82

4

R4.1mmx8

Φ87

Φ77

5

R4.5mmx8

Φ80

Φ72

4

R4.1mmx8

Φ79

Φ65

7

None

Φ75

Φ67

4

R4.1mmx8

Φ70

Φ62

4

R4.1mmx8

Φ62

Φ52

5

R4.1mmx8

Φ60

Φ50

5

R4.1mmx8

Φ55

Φ46

4.5

R4.1mmx8

Φ50

Φ40

5

R4.1mmx8

Φ40

Φ27

6.5

None

Φ32

Φ21.5

5.25

None
