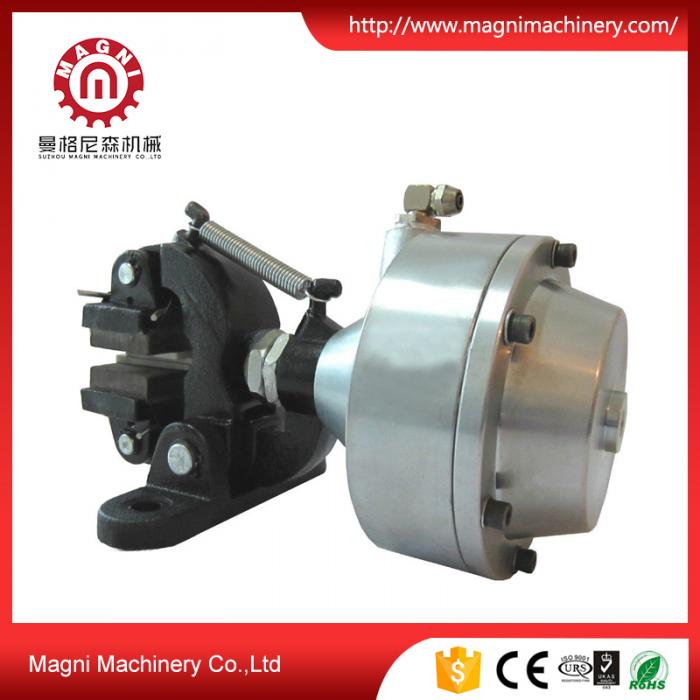

DBG-F/DBH-F Air Disc Brake

Name:DBG-F/DBH-F Air Disc Brake
Model:DBH-F/DBG-F
Outer diameter of disc:350mm
Thickness of disc:10~20mm,10~38mm
Min working release pressure:05Mpa


It is suitable use in protection condition specially, depends on the spring brake, release after full of air. The brake can run automatically when power is off or the air pressure is low, moreover the reactivity of link or unloosen is very promptly. The simple solid structure has the good dependability, the service life can last very longer.
