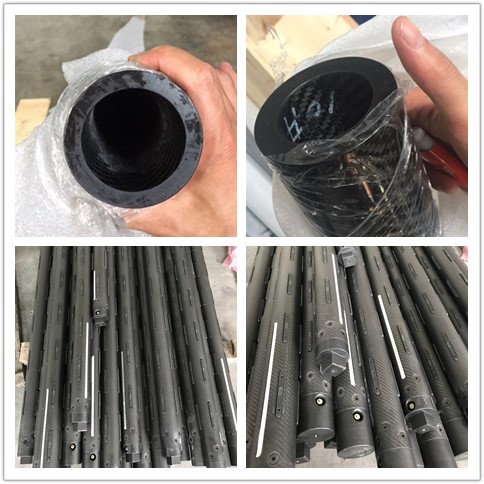

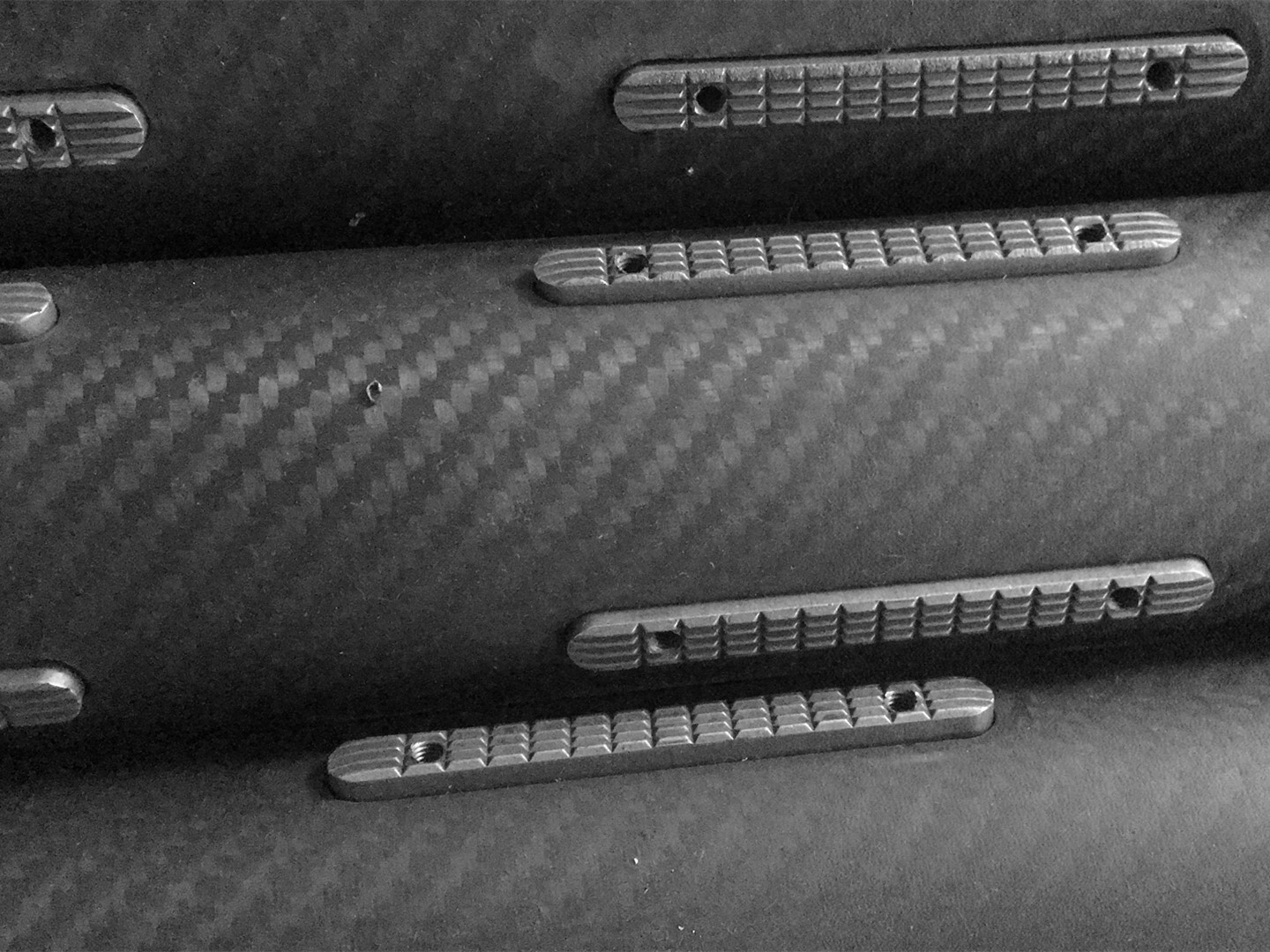

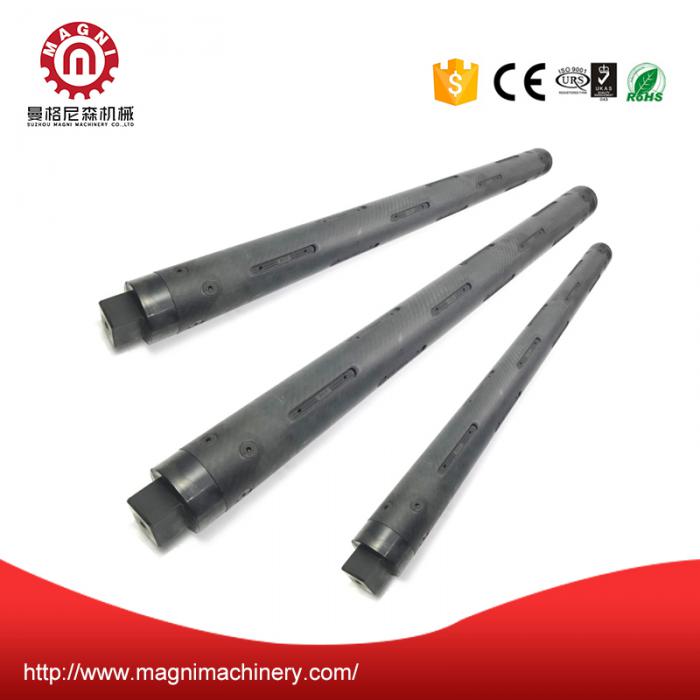

Carbon fiber air shaft
| Name: | Carbon fiber air shaft |
| Model: | Key type |
| Diameter: | 3inch or special made |
| Body material: | Carbon fiber |
Description & Features 描述与特性
● The shaft body adopts the composite material of carbon fiber structure;● The weight of carbon fiber air shaft is just 1/4 of traditional one. And carbon fiber air shaft is very suitable to use in high load capacity and manual loading and unloading situations;
● It can reduce most the operation staffs' occupational injuries on transportation and improve their work efficiency, with the advantage of the best ergonomics and performance;
● Optimized design of internal structure much represents the future of air shaft industry, even if in high-speed field, it won't produce severe shock;
● It has section modulus in best intensity ratio, which can be applied to all kinds of requirements. Special surface treatment fits to all kinds of special environments ( dust-free, corrosivity, high temperature situations);
● High quality rubber bladder and rapid aerating and exhausting air nozzle with good sealing effect and long service life;

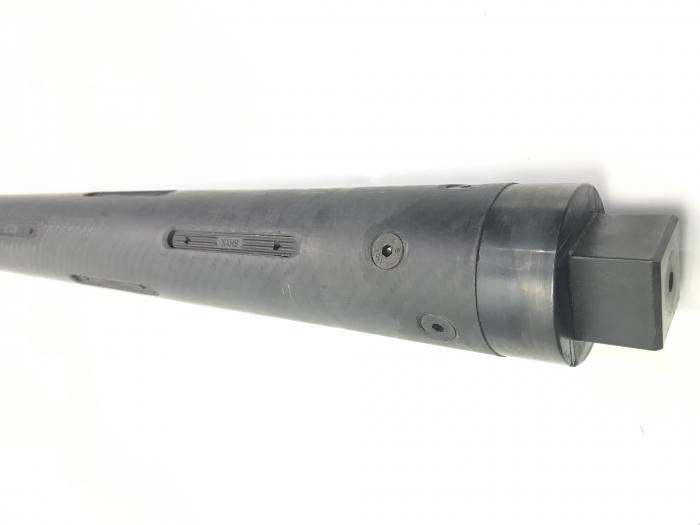

● The air shaft has removable shaft with simple maintenance.
● 轴主体采用碳纤维气胀轴采用碳纤结构的复合材料
● 碳纤气胀轴的重量仅为传统气胀轴的1/4，碳纤维气胀轴非常适合在高承载能力和人工装卸的情况下使用。● 它以最佳的人机工程学和性能优势，减少了大多数操作人员在搬运过程中所受的伤害，提高了工作效率。
● 气胀轴内部结构的优化设计是气胀轴行业未来的发展方向，即使在高速领域也不会产生剧烈振动。
● 具有最佳强度比下的截面模量，适用于各种要求。特殊表面处理适合
● 适用于各种特殊环境（无尘、腐蚀性、高温情况）。
● 优质橡胶内胆与快速充排气气嘴，密封效果好，使用寿命长；
● 可拆卸轴头，维修简便。
Technique parameter 技术参数
Model 型号 |

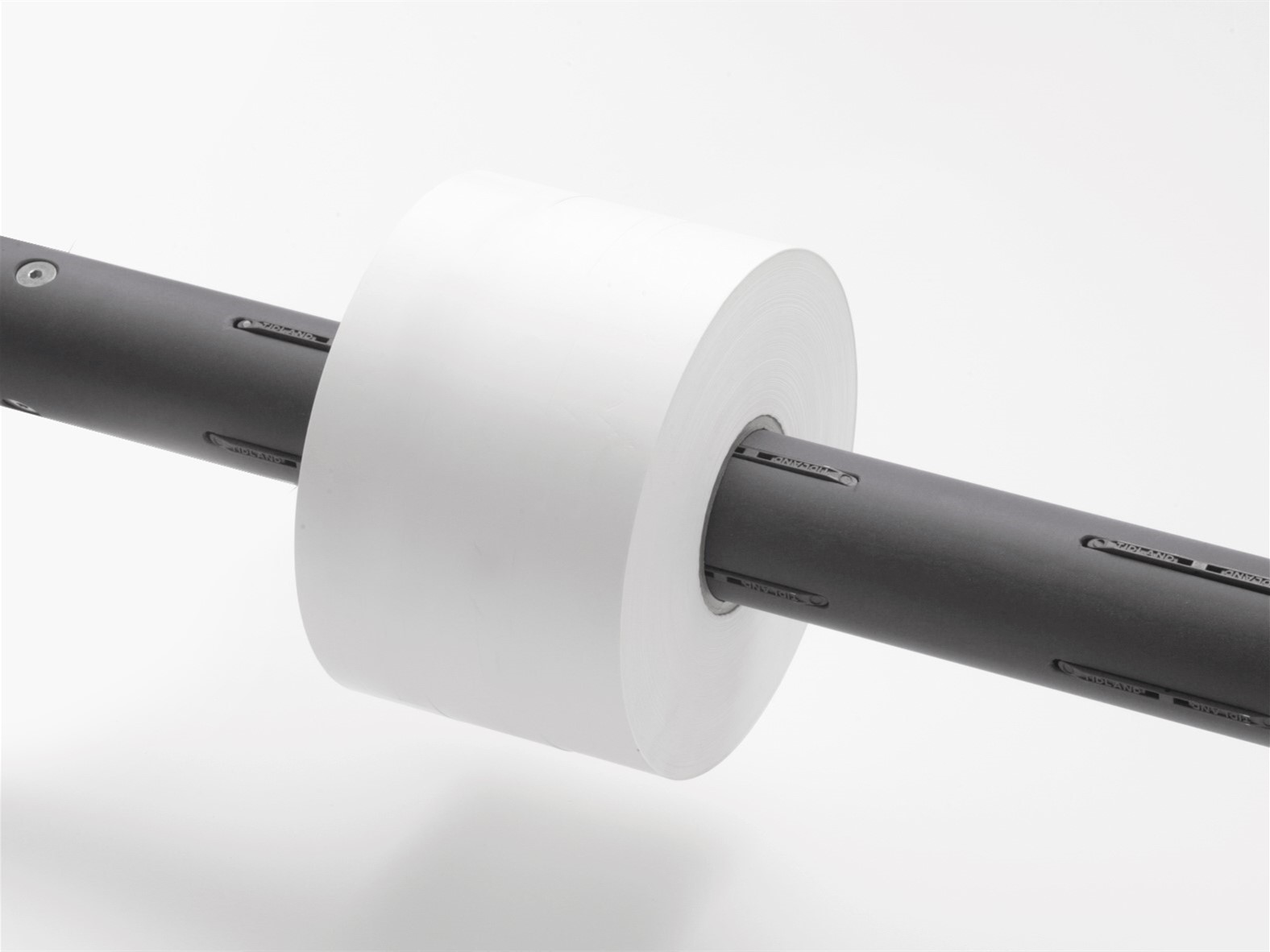

Paper tube inner diameter 纸管内直径 |
Shaft diameter before expanding 充气前直径 |
Shaft diameter after expanding 充气后直径 |
1" Shaft |
Φ25.4mm |
Φ24.8mm |
Φ28mm |
1.5" Shaft |
Φ38.1mm |
Φ37mm |
Φ41mm |
2" Shaft |
Φ50.8mm |
Φ49mm |
Φ53mm |
3" Shaft |
Φ76.2mm |
Φ74mm |
Φ82mm |
4" Shaft |
Φ101.6mm |
Φ100mm |
Φ108mm |
6" Shaft |
Φ152.4mm |
Φ150mm |
Φ158mm |
8" Shaft |
Φ203.2mm |
Φ200mm |
Φ210mm |
10" Shaft |
Φ254mm |
Φ250mm |
Φ260mm |
12" Shaft |
Φ304.8mm |
Φ300mm |
Φ310mm |
