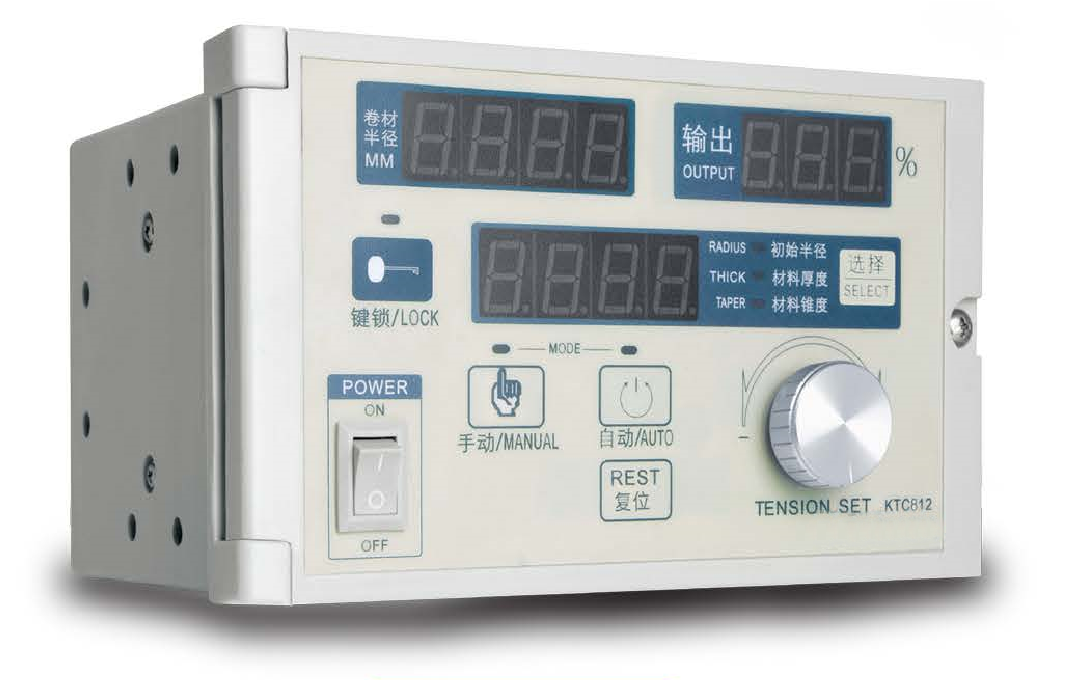

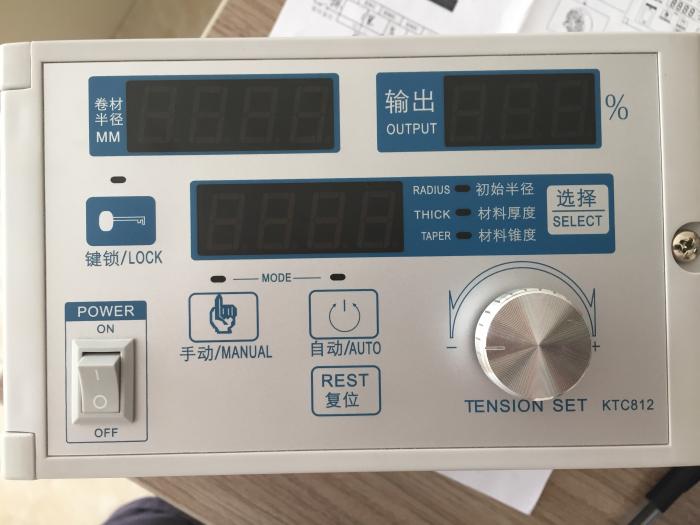

KTC812 Web Dia Tension Controller

Name:KTC812 Web Dia Tension Controller
Model:KTC812
Control:Semi automatic



介绍Introduction

张力控制器KTC812卷径可通过编码器或接近开关演算卷材的半径变化,自动调整张力输出值,对卷材进行恒张力或锥度张力的控制。KTC812根据磁粉离合器/制动器在低转矩时非线性的特征,特有转矩补偿功能,使张力曲线更为平坦。系统结构简单实用,稳定可靠,适用于卷材的收/放卷控制。

KTC-812 Roll Diameter Tension Controller can measure the change of coiled material’s radius by the encoder and proximity switch. It can adjust the output value of tension automatically and control the constant and taper tension. Aiming at the features of nonlinearity when magnetic power brake/clutch is at the low torque, KTC812 has the function of torque compensation and makes the curve more flat. System structure is simple and practical. It is stable and reliable and used for coiled material’s collect/release control.



特点Features

1可手动/自动工作

Manual/automatic operation

2、可调的磁粉制动器/离合器转矩补偿

Adjustable torque compensation of magnetic power brake/clutch

3、只需设定3个简单的参数即可工作

Just need to set three simple parameters to work

4、可连接编码器或接近开关

Can connect the encoder or proximity switch

5、可储存9组不同材料的参数

Ability to store nine different kinds of parameters from various materials

6、自动演算卷材半径

Calculate the radius of coiled material automatically

7、恒张力/锥度张力控制

Constant/taper tension control

8、输出0-24V/4A,过流自动保护

0-24V/4V output, automatic over-current protection system

9、自动记忆系统所有参数和状态

Automatic Memory System of all the parameters and states
