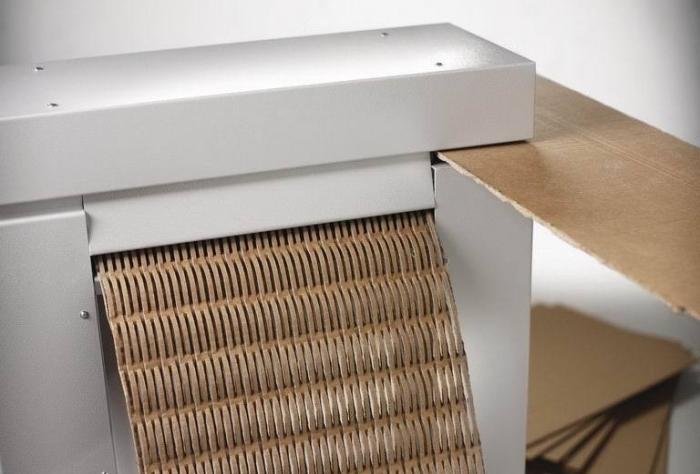

MD-325 Shredder For Cardboard Paper

Name:MD-325 Shredder For Cardboard Paper
Model:MD-325
Width of paper:325mm
Thickness:20mm


INTRODUCTION

The YD series of corrugated paper machine is special made as the cardboard-box factory supporting products, cost-effective,.

Microcomputer control, cardboard ultra width automatic cutting;

Dealing with unqualified paper board,carton,color box,paper box…etc.it can make the corrugated carton become a free  soft green environmental protection packing material,and it’s also used to fragile goods transport packaging.



TECHNICAL DATA


TYPE

YD-325

YD-425

Mode

Half open feed

Half open feed

Width of paper

325mm

425mm

Thickness

20mm

20mm

Shredded shape

5×60mm

or 5mm strip

5×100mm

or 5mm strip

Thickness of shredded paper

3-5 layer corrugated paper

30-40PCS

A4/70g paper

5-7 layer corrugated paper

40-70 PCS

A4 70g paper

Speed

12 m/min

12 m/min

Noise(db)

60

60

Power

220V /50Hz

380V/50Hz

Rated Power

1.8KW

2.8KW

Weight

90Kg

165Kg

Dimension

W 500×L 355×H 800mm

W 700×L680×H970mm

Package Size

W830×L635×H1240mm

Total Weight

207Kg
