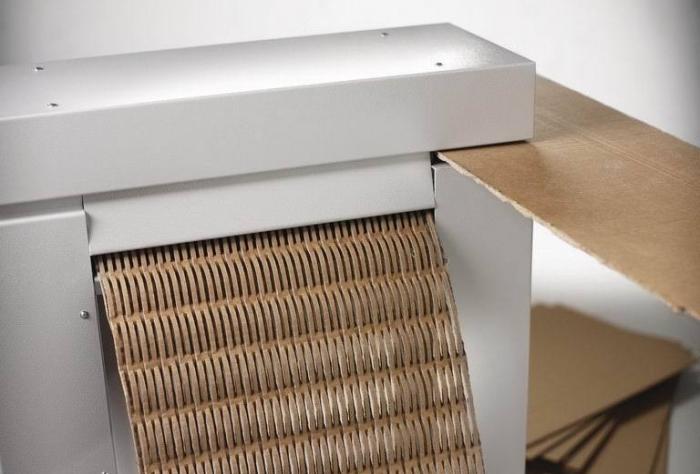

MD-425 Shredder For Cardboard Paper
| Name: | MD-425 Shredder For Cardboard Paper |
| Model: | MD-425 |
| Width of paper: | 425mm |
| Thickness: | 20mm |
INTRODUCTION
The YD series of
corrugated paper machine is special made as the cardboard-box factory
supporting products, cost-effective,.
Microcomputer control,
cardboard ultra width automatic cutting;
Dealing with unqualified

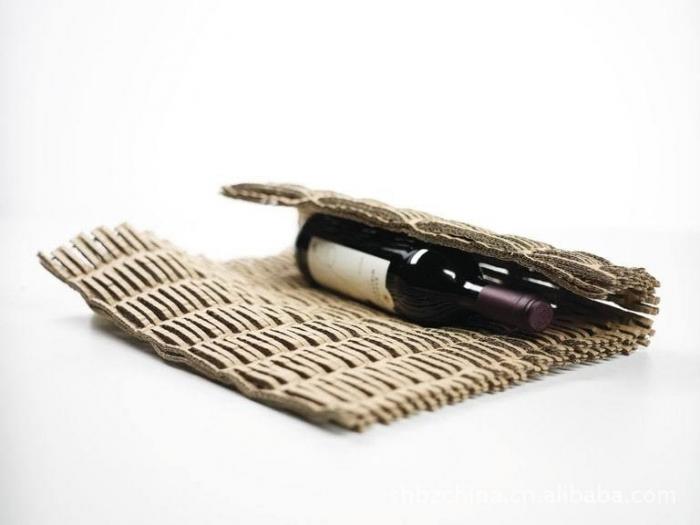

paper board,carton,color box,paper box…etc.it can make the corrugated carton
become a free soft green environmental
protection packing material,and it’s also used to fragile goods transport
packaging.
TECHNICAL DATA
| TYPE |
YD-325 |
YD-425 |
| Mode |
Half open feed |
Half open feed |
| Width of paper |
325mm |
425mm |
| Thickness |
20mm |
20mm |
| Shredded shape |
5×60mm （or 5mm strip） |
5×100mm （or 5mm strip） |
| Thickness of shredded paper |
3-5 layer corrugated paper； 30-40PCS A4/70g paper |
5-7 layer corrugated paper； 40-70 PCS A4 70g paper |
| Speed |
12 m/min |
12 m/min |
| Noise(db) |
60 |
60 |
| Power |
220V /50Hz |
380V/50Hz |
| Rated Power |
1.8KW |
2.8KW |
| Weight |
90Kg |
165Kg |
| Dimension |
W 500×L 355×H 800mm |
W 700×L680×H970mm |
| Package Size |
W830×L635×H1240mm |
|
| Total Weight |
207Kg |
