Double Roller Steering Guides （End Pivot）
| Name: | Double Roller Steering Guides （End Pivot） |
| 型号Type: | GDPD104L/GDPD204L |
| 导辊长度Roller length: | Special made |
| 行程Guide stroke: | 150mm/200mm |
| 驱动速度Drive speed: | 40mm/s |
| 对中方式Web guide method: | EPC/CPC/LPC |
| 导辊数量Roller QTY: | Double rollers |
导辊式导向纠偏控制系统(中间导向纠偏)
Roller Steering Guides Control System（End Pivot Web Guider）

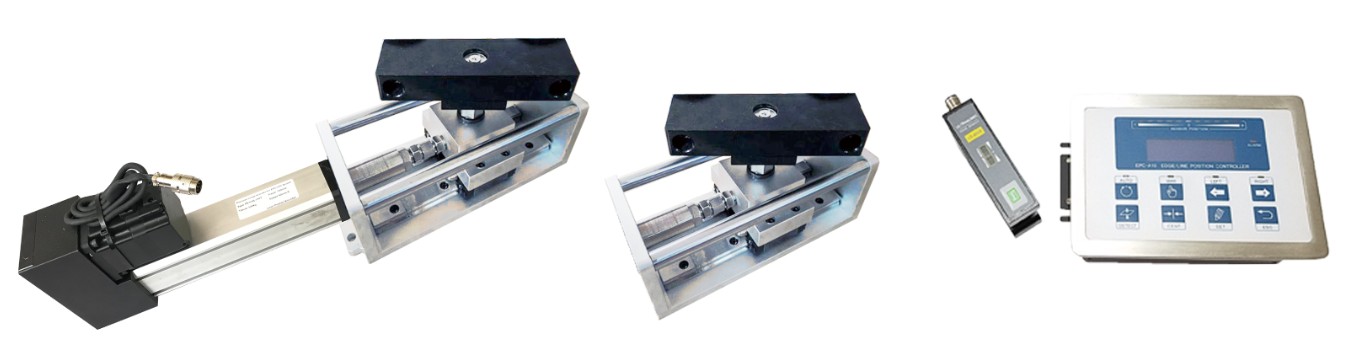

导向辊式纠偏装置由纠偏控制器，传感器，伺服电机，纠偏导向架和导向辊组成，这四大部分组成一个闭环控制系统，该系统通过一个长入口跨度穿料方式对卷材进行精确纠偏。这款创新型的纠偏系统可以对卷材进行横向误差纠正。
The roller steering guides web control system consists of a controller, sensor, servo motor, a web guide frame and a guide roll. These five parts constitute a closed-loop control system. The system corrects the coil precisely through a long entrance span feeding way. This innovative deviation correction system can correct the lateral error of coil.

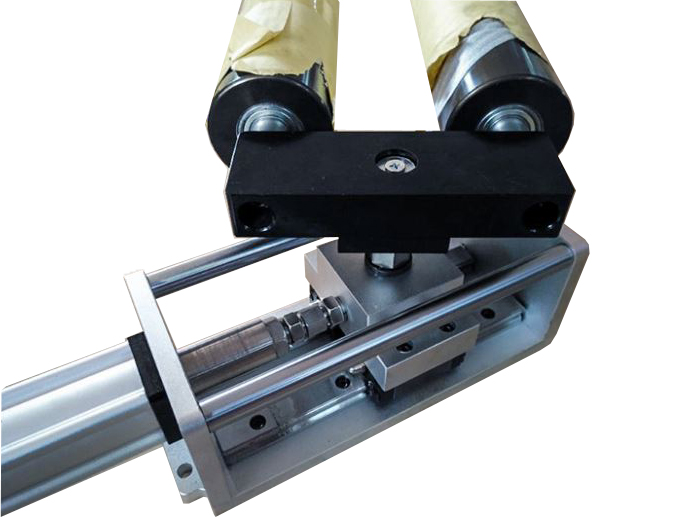

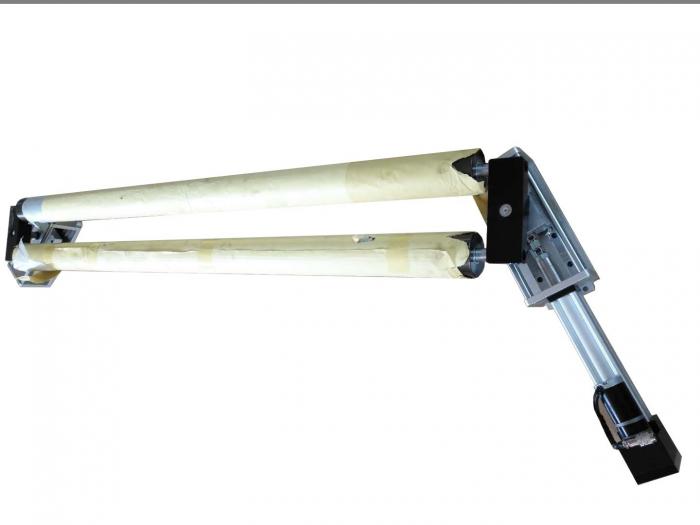

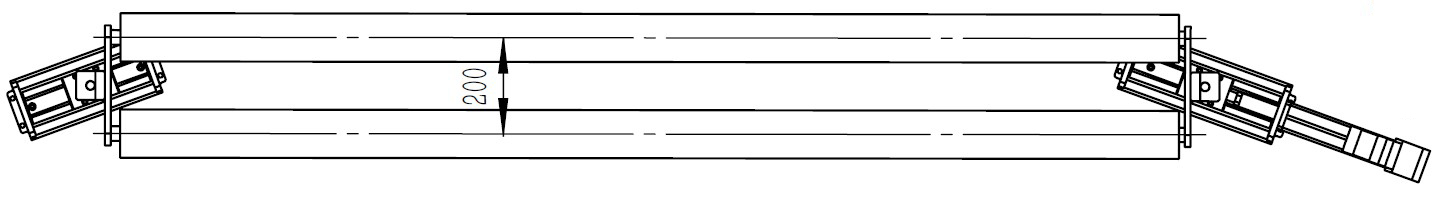

双导辊纠偏Double Roller Steering Guides
性能特点Features
• 导辊的长度根据用户不同的需求进行特殊定制。
The length of guide roller is special customized.
• 可采用单导辊或双导辊导向纠偏。
Single guide roll or double guide roll can be optional used.
• 采用伺服机电控制系统, 纠偏快速，准确。
Adopt high precision servo motor control system, Fast and accurate correction.
• 采用低摩擦球轴承和精密导杆传动零件。
Low friction ball bearings and precision guide rods are used to drive parts.
• 耐用性高，可长期持续运作，维修率低。
High durability, long-term continuous operation and low maintenance rate.
• 根据卷材材料进行传感器的选择。
Selection of sensors based on coil material.
• 可选择配置LPC,EPC,CPC。
Optional configuration of LPC, EPC, CPC.
• 模块化组装，实现快速按照。
Modular assembly to achieve rapid compliance.

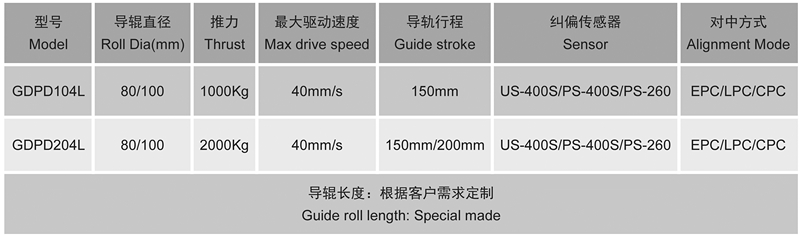

技术参数Technical Parameter
