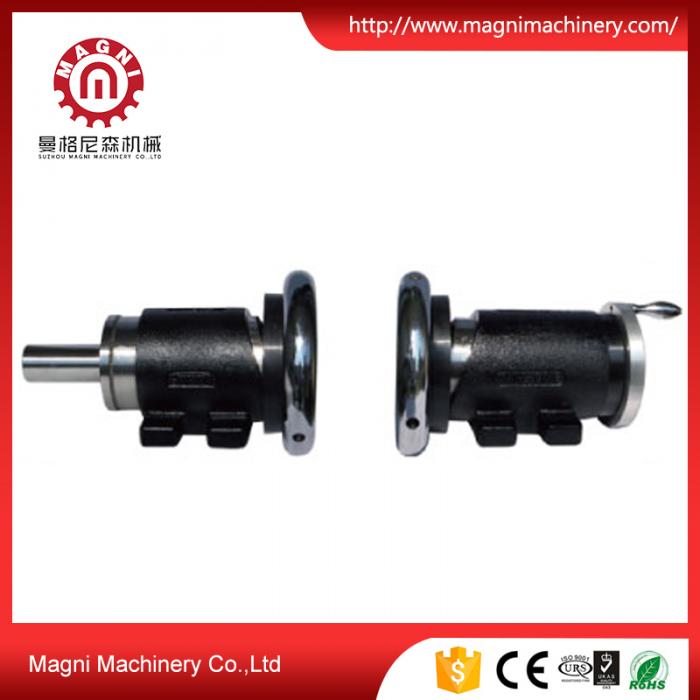

SKWF/SKOF Sliding Safety Chuck
| Name: | SKWF/SKOF Sliding Safety Chuck |
| 型号Model: | 28,35,50 |
| 梁最大荷重量Max loading: | 700Kg,1400Kg,2800Kg |
| 承受最大转矩 Max torque[kg/m(N/m)]: | 15(150) ,30(300) ,110(1100) |
| 卷轴轴端允许尺寸Square sizemm: | 22-30,30-40 ,40-50 |
滑动安全夹头Sliding Safety chuck
法兰型Flange Mounted Type
特性 Features
允许卷轴在机器运转过程进行轴向调整。调整可以通过手轮或者自动机构进行。轴向定位装置确保卷轴安全，准确地传送转矩。
Sliding safety chuck allows reel for axial adjustment when the machine on the running. Adjustment can be carried out by handwheel or automatic mechanism. Axial positioning device to ensure the safety of the reel, accurate transmission torque.

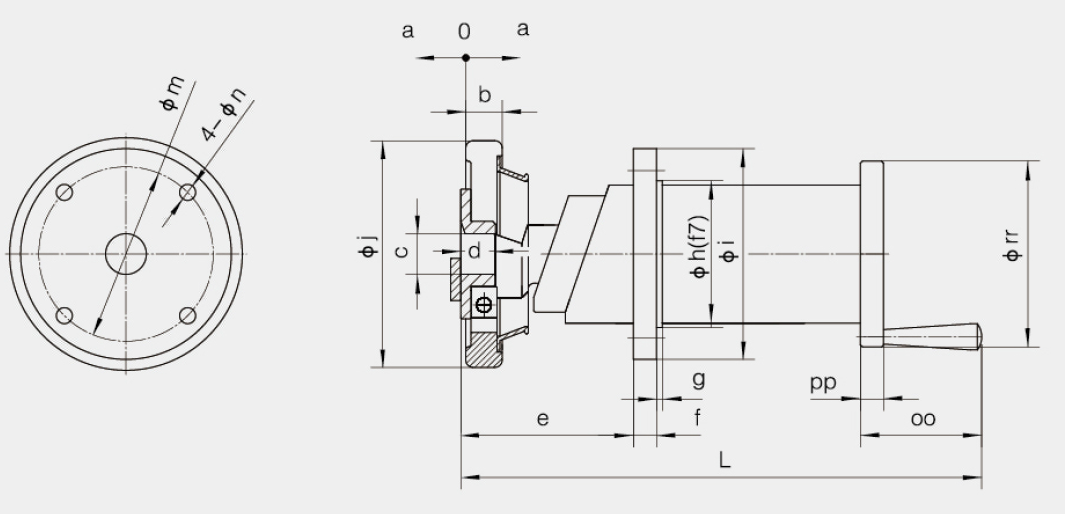

SKWF/SKOF法兰型滑动安全卡盘
SKWF/SKOF Flange
type sliding safety chuck

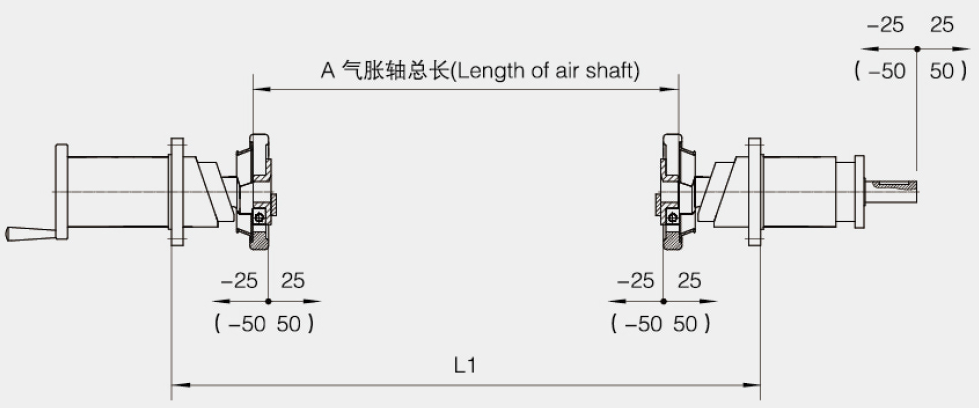

50mm滑动行程50mm Slide stroke
型号Model |
28 |
35 |
50 |
L1 |
A+188 |
A+197 |
A+219 |
L2 |
B+156 |
B+156 |
B+176 |
100mm滑动行程100mm Slid stroke
型号Model |
35 |
50 |
L1 |
A+247 |
A+269 |
L2 |
B+206 |
B+226 |

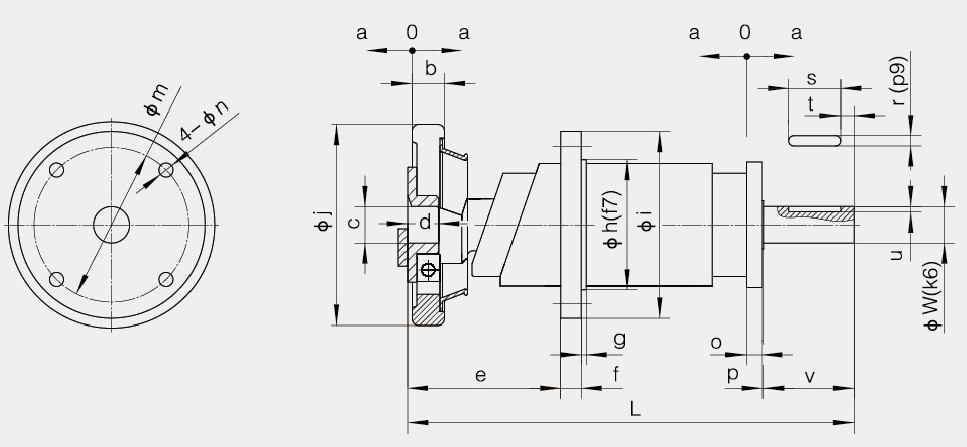

SKWF法兰型滑动安全卡盘
SKWF Flange type
sliding safety chuck
型号 |
Model |
28 |
35 |
50 |
梁最大荷重量kg |
Max loading |
700 |
1400 |
2800 |
承受最大转矩kg/m(N/m) |
Max torque |
15(150) |
30(300) |
110(1100) |
卷轴轴端允许尺寸mm |
Square size |
22-30 |
30-40 |
40-50 |
SKOF法兰型滑动安全卡盘
SKOF Flange type slding safety chuck
|
型号 |
Model |
28 |
35 |
50 |
|
梁最大荷重量kg |
Max loading |
700 |
1400 |
2800 |
|
承受最大转矩kg/m(N/m) |
Max torque |
15(150) |
30(300) |
110(1100) |
|
卷轴轴端允许尺mm |
Square size |
22-30 |
30-40 |
40-50 |
