Product Description 产品描述

The adapter for the air shaft is fit for the air shaft of size 118mm.With the help of the friction of the 60mm air shaft itself,the adapter can be fixed.It can be fixed in anywhere by the single or double way,even more.

本套夹可配合60mm气胀轴或φ60外径之卷轴使用。可借用60mm气胀轴本身之抓力对本套夹之内径加以固定或以附属之弧形迫环固之。本套夹可单一只或成对于轴上任意定点加以固定使用。



Installation specification 安装规格

Technique parameter 技术参数

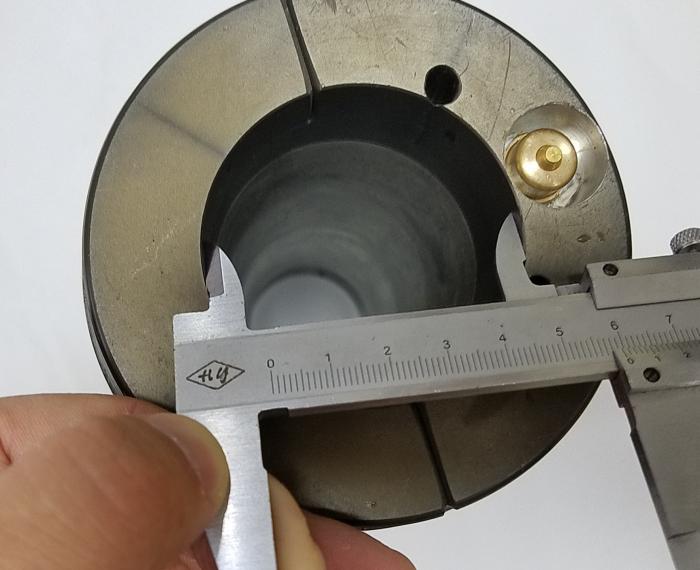

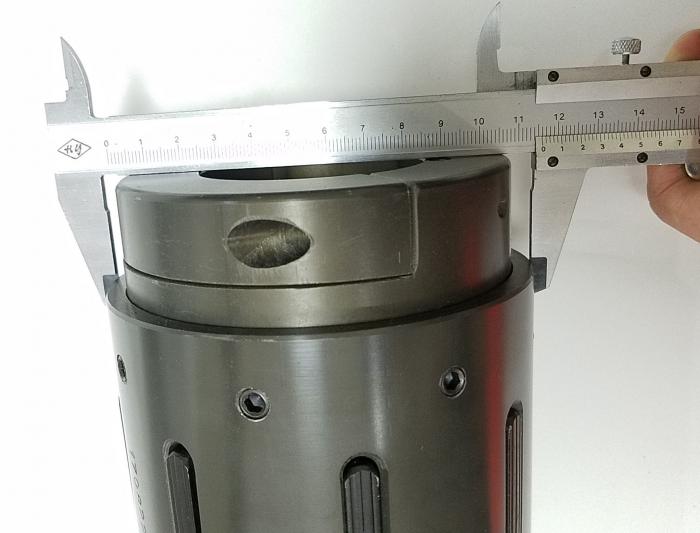

Specification 规格	60.2mm vs 116mm
The diameter before air inflation(Φmm) 充气前直径	116mm
The diameter after air inflation(Φmm) 充气后直径	120mm
The inside diameter of paper tube (Φmm) 纸管内直径	118mm
Weight calculation (kg) 重量	5 kg

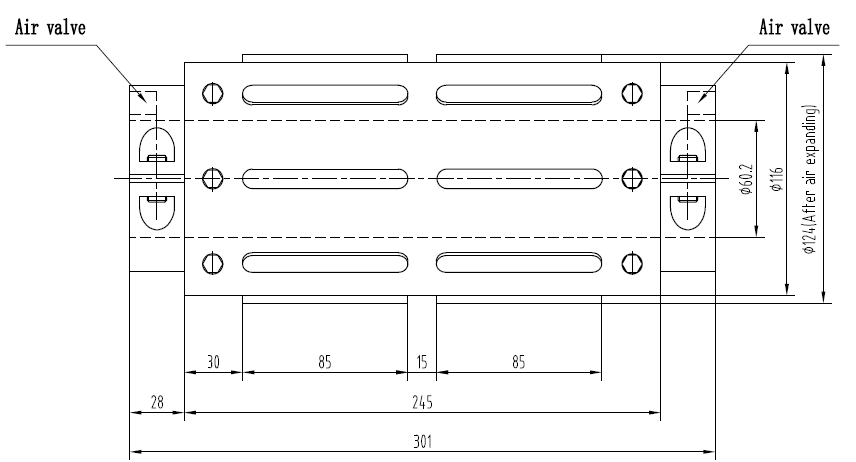

Basic structure 主要结构

Working drawing应用示意
